Product Description

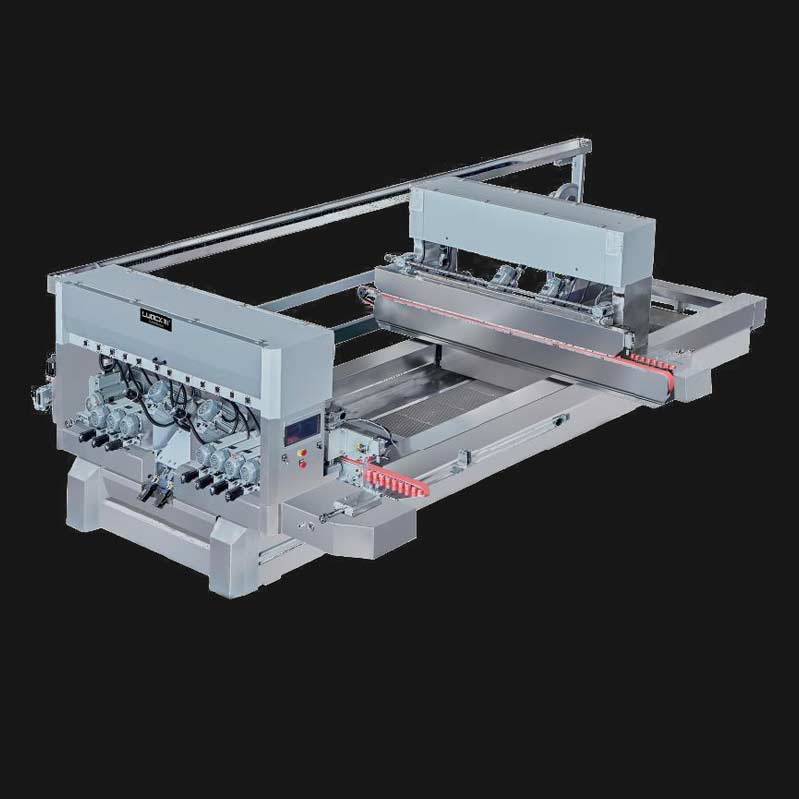

FGE-DE High speed double edger machine with servo drive safety corner grinding device
1. DIFFERENT SIZE FOR OPTION
| MODLE | FGE-DE1500 | FGE-DE2000 | FGE-DE2500 | FGE-DE3000 | FGE-DE4200 | FGE-DE5000 | FGE-DE6000 |
| Maximum glass processing size |
1500mm | 2000mm | 2500mm | 3000mm | 4200mm | 5000mm | 6000mm |
| Minimum glass processing size |
250mm | 250mm | 250mm | 250mm | 250mm | 250mm | 250mm |
2.TECHNICAL INFORMATION:
| Glass processing thickness | 3-19mm |
| Glass Processing speed | 0-15m/min |
| Open and close speed | 0-15m/min |
| Diagonal tolerance of processing glass (mm) | (1m*1m) ±0.5mm/m |
| Parallel tolerance of processing glass(mm) | (1m*1m) ±0.1mm/m |
| Chamfer tolerance(mm) | <=0.3mm/m |
| Chamfer width(mm) | 1-3mm |
| Working table height | 870mm |

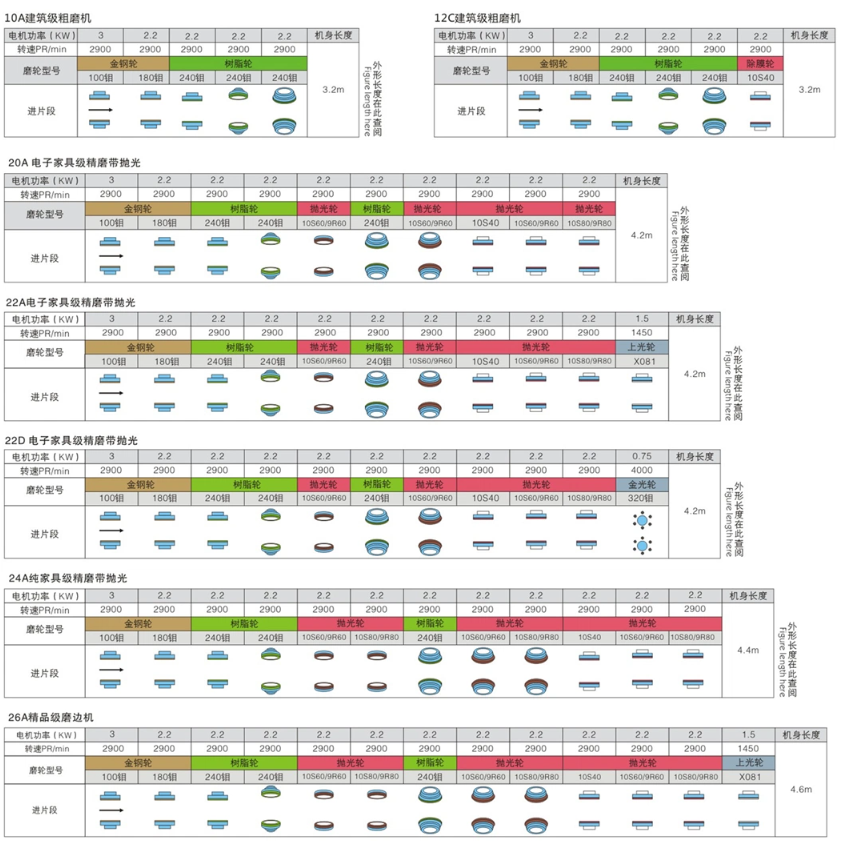

3.GRINDING WHEEL CONFIGURATION:

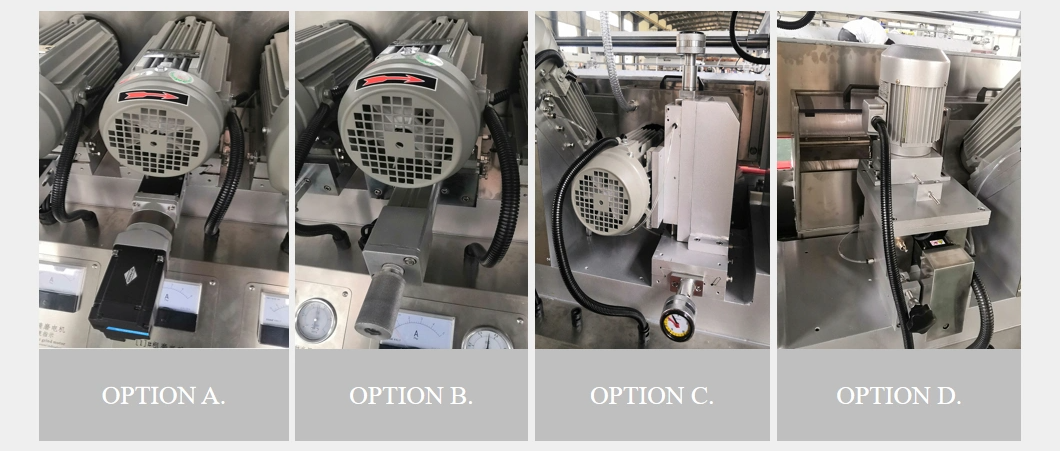

4.OPTION FUNCTION
OPTION A. Automatic compensation for diamond wheel
OPTION B. Automatic compensation and position locking for polishing wheel
OPTION C. Low-E coating removed device
OPTION D. Safety corner cutting device

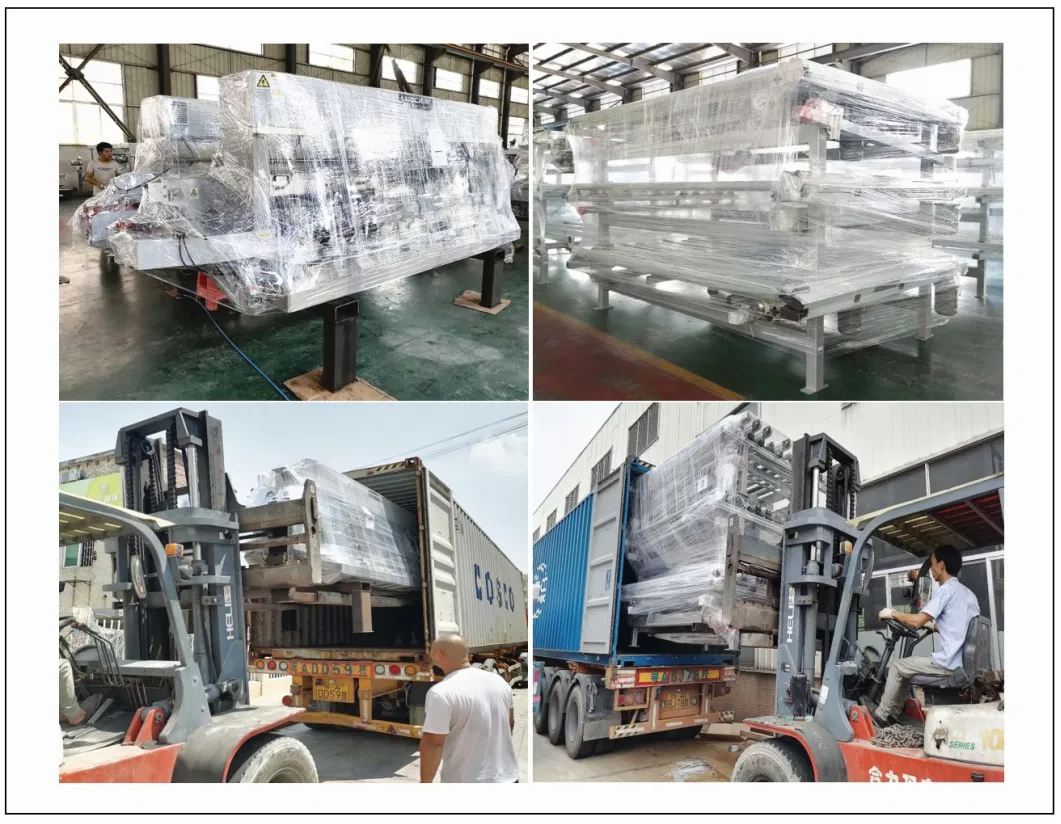

5. PACKING & LOADING PICTURES
