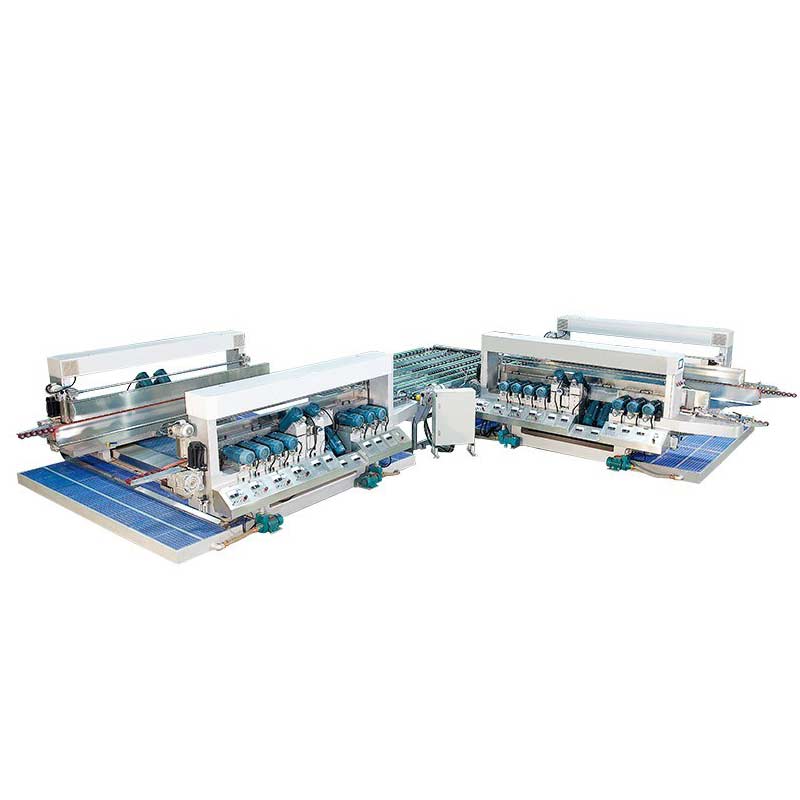

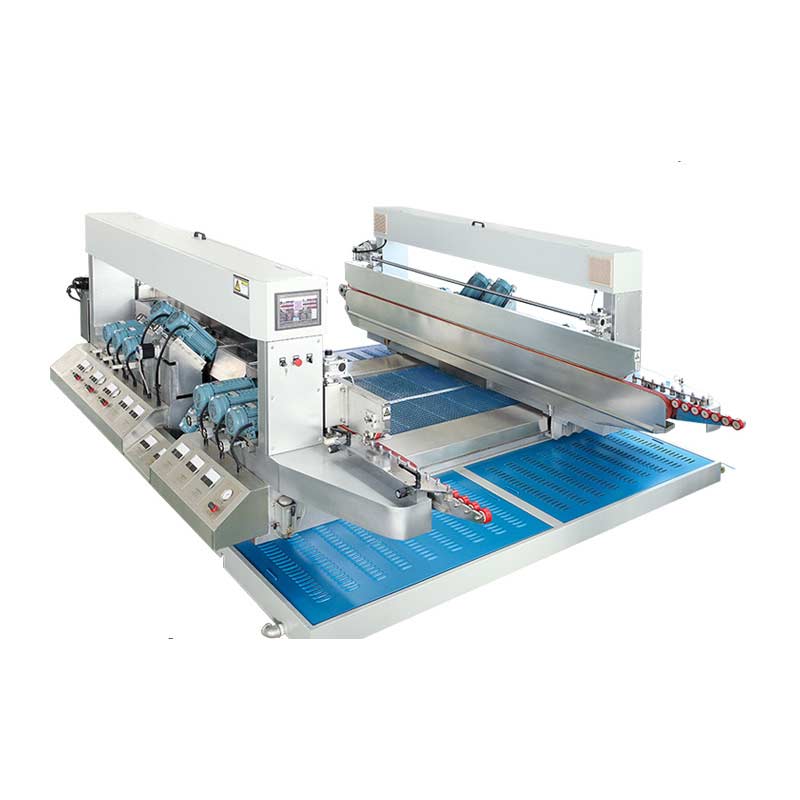

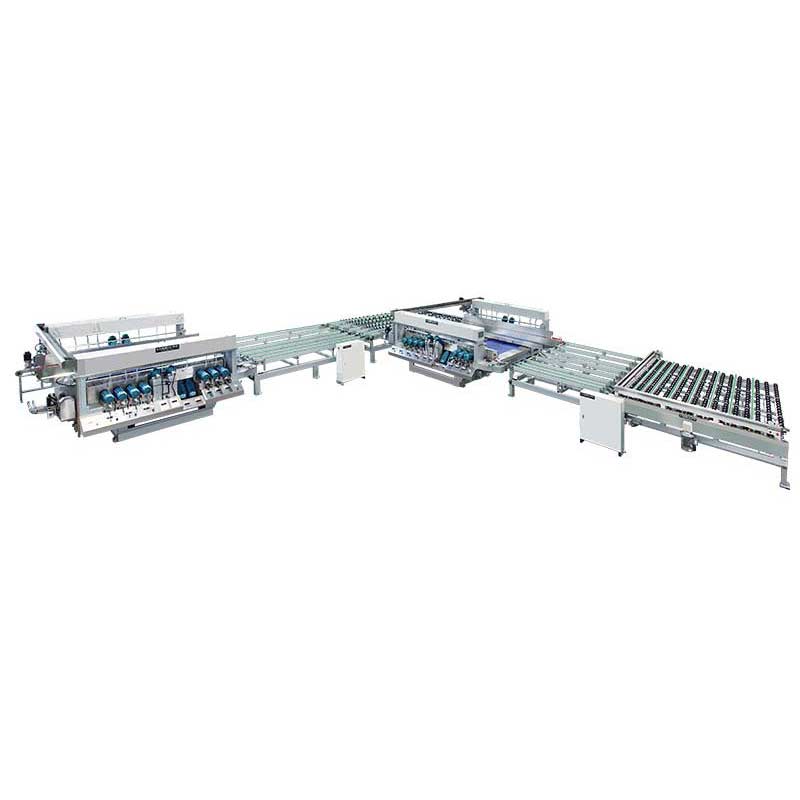

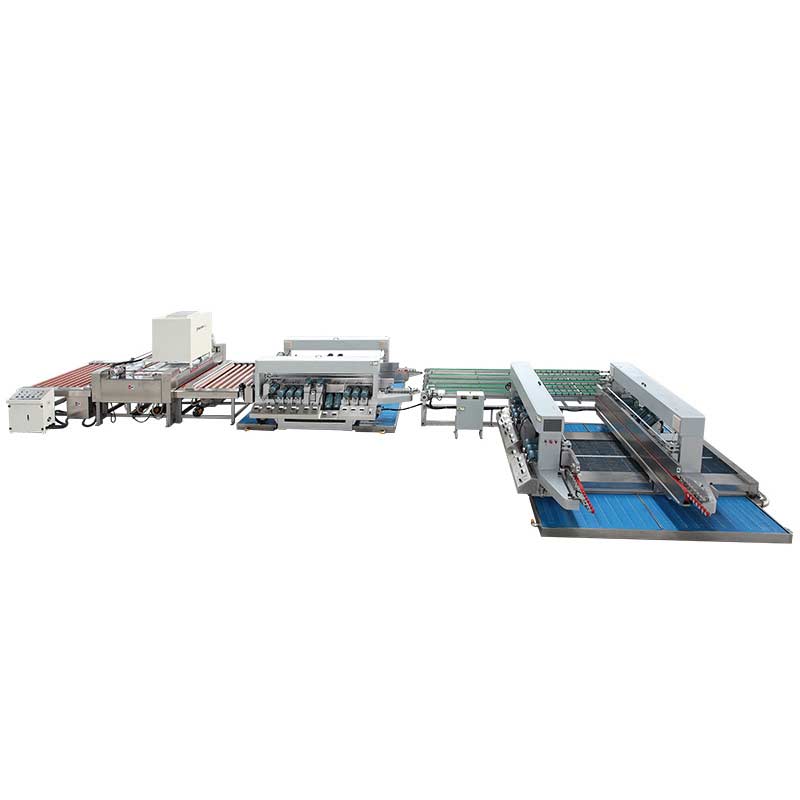

Automatically High Speed Double Edger Machine
Product ID : FGE-DE
Product Attributes :
All glass must go through the process of edging before being use, not only bright but most importantly~safety!!!
LUOCK glass double edger machine can solve the problem of glass edging and polishing. The horizontal double edger machine is safer and more efficient for large glass.
Product Description
Basic Info.
| Model NO. | FGE-DE3000 | Glass Edging Machine Type | Glass Double Edging Machine |
| Grinding Head Number | 20 | Condition | New |
| Glass Processing Thickness | 3-19mm | Open and Close Speed | 0-15m/Min |
| Glass Processing Speed | 0-12m/Min | Delivery Time | 60-90 Days |
| Diagonal Tolerance of Processing Glass | 0.5mm/M | Parallel Tolerance of Processing Glass | 0.1mm/M |
| Chamfer Tolerance | <=0.3mm/M | Chamfer Width | 1-3mm |
| Working Table Height | 870mm | Transport Package | Iron Frame & Shrink Film |
| Specification | 3800*4200*2000mm | Trademark | AGLASSTEC |
| Origin | China | HS Code | 8464201 |
| Production Capacity | 20sets/Month |
Product Description

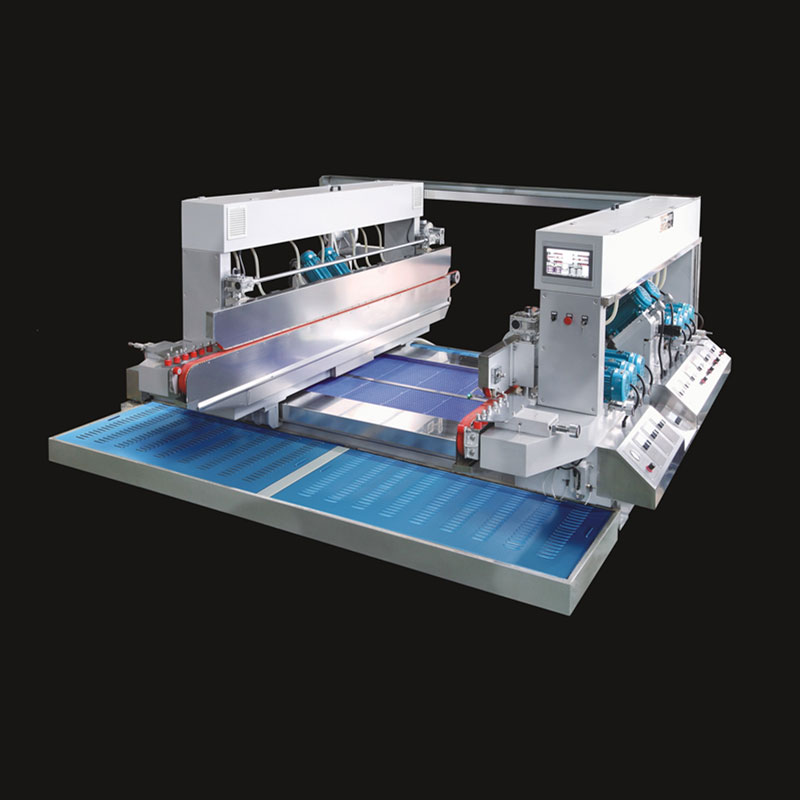

SK series 3000mm Automatically high speed glass double edger machine.
1. DIFFERENT SIZE FOR OPTION
| MODEL | FGE-DE2015 | FGE-DE2520 | FGE-DE3025 | FGE-DE4225 | FGE-DE5030 | FGE-DE6030 |
| Maximum glass processing size |
2000*1500mm | 2500*2000mm | 3000*2500mm | 4200*2500mm | 5000*3000mm | 6000*3000mm |
| Minimum glass processing size |
300*300mm | 350*350mm | 350*350mm | 400*400mm | 400*400mm | 400*400mm |
2.TECHNICAL INFORMATION:
| Glass processing thickness | 3-19mm |
| Glass Processing speed | 0-12m/min |
| Open and close speed | 0-15m/min |
| Diagonal tolerance of processing glass (mm) | (1m*1m) ±0.5mm/m |
| Parallel tolerance of processing glass(mm) | (1m*1m) ±0.1mm/m |
| Chamfer tolerance(mm) | <=0.3mm/m |
| Chamfer width(mm) | 1-3mm |
| Working table height | 870mm |
3.GRINDING WHEEL CONFIGURATION:
4.OPTION FUNCTION
OPTION A. Automatic compensation for diamond wheel
OPTION B. Automatic compensation and position locking for polishing wheel
OPTION C. Low-E coating removed device
OPTION D. Safety corner cutting device
5. PACKING & LOADING PICTURES
Warmly welcome to visit, if there is any model you are interested, please feel free to contact.
Looking forward to cooperate with you and let's mutual benefit and win-win result.
